Name: RAMS.LRSE_STRUCTURECONTROL

Display Field: EVENT_ID

Type: Feature Layer

Geometry Type: esriGeometryPoint

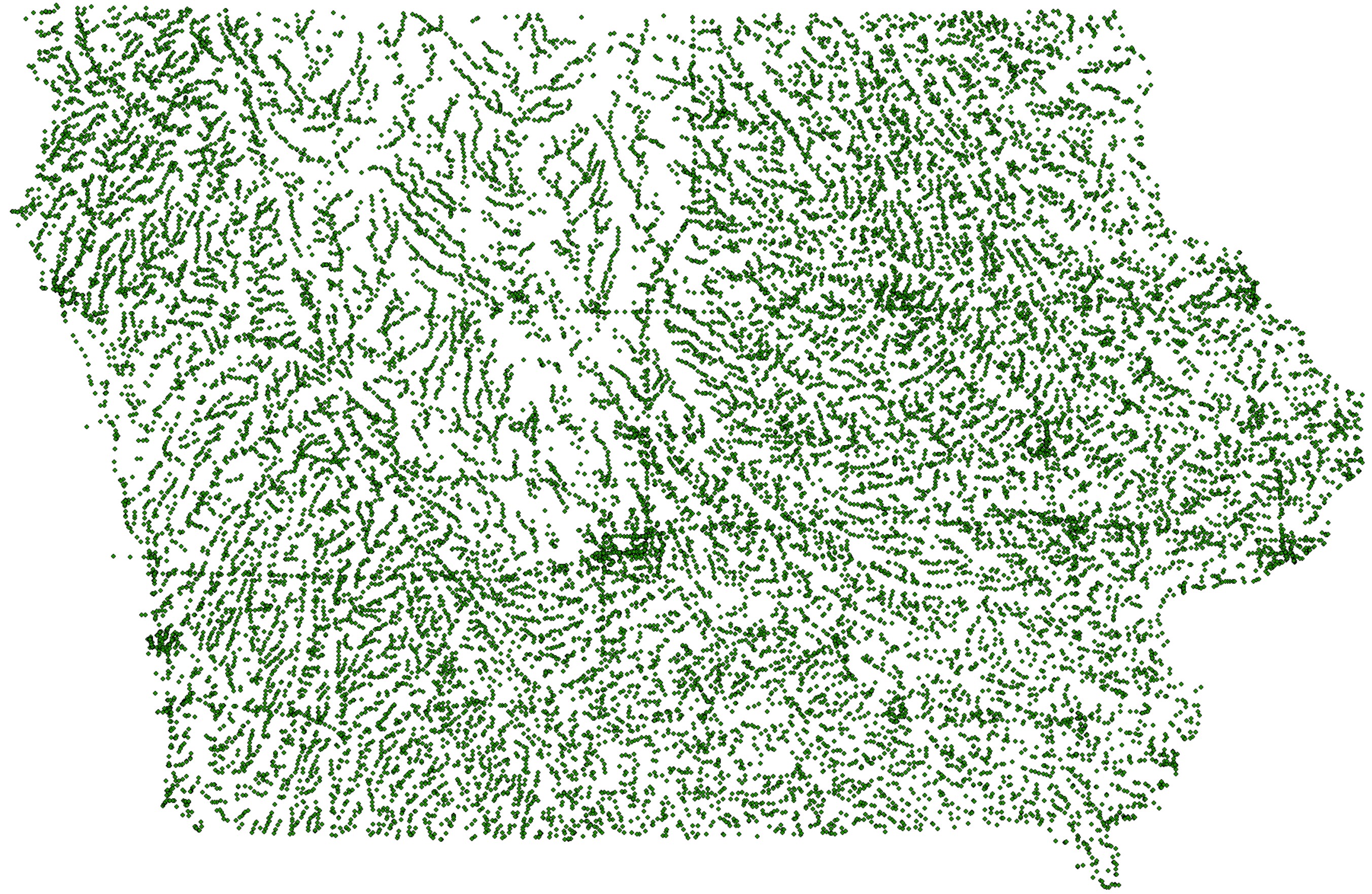

Description: Information related to structures on the road network

Service Item Id: d08eb5697ddf49b3a76021d79c96701d

Copyright Text: Iowa Department of Transportation

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 48515.5884399414
YMin: 44903.134033203096
XMax: 580814.0686035161
YMax: 392816.60882568406
Spatial Reference: 0  (0)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [121, 142, 61, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: true
Supports Query With Current User: true

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• EVENT_ID ( type: esriFieldTypeString, alias: EVENT_ID, length: 38 )
• ROUTE_ID ( type: esriFieldTypeString, alias: ROUTE_ID, length: 15 )
• MEASURE ( type: esriFieldTypeDouble, alias: MEASURE )
• BUSINESS_DATE ( type: esriFieldTypeDate, alias: BUSINESS_DATE, length: 8 )
• EFFECTIVE_START_DATE ( type: esriFieldTypeDate, alias: EFFECTIVE_START_DATE, length: 8 )
• EFFECTIVE_END_DATE ( type: esriFieldTypeDate, alias: EFFECTIVE_END_DATE, length: 8 )
• USER_CREATE ( type: esriFieldTypeString, alias: USER_CREATE, length: 100 )
• USER_MOD ( type: esriFieldTypeString, alias: USER_MOD, length: 100 )
• SYSTEM_CREATE_DATE ( type: esriFieldTypeDate, alias: SYSTEM_CREATE_DATE, length: 8 )
• SYSTEM_MOD_DATE ( type: esriFieldTypeDate, alias: SYSTEM_MOD_DATE, length: 8 )
• FHWA_NUMBER ( type: esriFieldTypeDouble, alias: FHWA_NUMBER )
• FACILITY_CARRIED ( type: esriFieldTypeString, alias: FACILITY_CARRIED, length: 18 )
• NBIA_ITEM ( type: esriFieldTypeString, alias: NBIA_ITEM, length: 1 , Coded Values: [Y: NBI Bridge] , [N: Non-NBI Bridge] )
• STRUC_COUNTY_NUMBER ( type: esriFieldTypeInteger, alias: STRUC_COUNTY_NUMBER , Coded Values: [1: 1 - ADAIR] , [2: 2 - ADAMS] , [3: 3 - ALLAMAKEE] , ...96 more... )
• DESIGN_NUMBER ( type: esriFieldTypeString, alias: DESIGN_NUMBER, length: 6 )
• CONSTRUCTION_YEAR ( type: esriFieldTypeSmallInteger, alias: CONSTRUCTION_YEAR )
• OWNER_CODE ( type: esriFieldTypeInteger, alias: OWNER_CODE , Coded Values: [1: 1 - STATE HIGHWAY AGENCY] , [2: 2 - COUNTY HIGHWAY AGENCY] , [3: 3 - TOWN OR TOWNSHIP HIGHWAY AGENCY] , ...25 more... )
• MEASURED_LAT ( type: esriFieldTypeDouble, alias: MEASURED_LAT )
• MEASURED_LON ( type: esriFieldTypeDouble, alias: MEASURED_LON )
• HISTORICAL_SIGNIFICANCE ( type: esriFieldTypeInteger, alias: HISTORICAL_SIGNIFICANCE , Coded Values: [1: 1 - BRIDGE IS ON NATIONAL REGISTER OF HISTORICAL PLACES] , [2: 2 - BRIDGE IS ELIGIBLE FOR NATIONAL REGISTER OF HISTORICAL PLACES] , [3: 3 - BRIDGE IS POSSIBLY ELIGIBLE FOR NATIONAL REGISTER OF HISTORICAL PLACES] , ...2 more... )
• MAINTENANCE_CENTER ( type: esriFieldTypeInteger, alias: MAINTENANCE_CENTER , Coded Values: [1: 1 - CENTRAL] , [2: 2 - NORTHEAST] , [3: 3 - NORTHWEST] , ...3 more... )
• MAINTENANCE_AREA ( type: esriFieldTypeInteger, alias: MAINTENANCE_AREA )
• MAINTENANCE_GARAGE ( type: esriFieldTypeInteger, alias: MAINTENANCE_GARAGE )
• BRIDGE_ID ( type: esriFieldTypeString, alias: BRIDGE_ID, length: 16 )
• VERTICAL_REFERENCE_FEATURE ( type: esriFieldTypeString, alias: VERTICAL_REFERENCE_FEATURE, length: 1 , Coded Values: [H: H - HIGHWAY BENEATH STRUCTURE] , [R: R - RAILROAD BENEATH STRUCTURE] , [N: N - FEATURE NOT A HIGHWAY OR RAILROAD] )
• VERTICAL_UNDER_CLEARANCE ( type: esriFieldTypeInteger, alias: VERTICAL_UNDER_CLEARANCE )
• FRA_CROSSING_NUMBER ( type: esriFieldTypeString, alias: FRA_CROSSING_NUMBER, length: 7 )
• STRUC_STATUS ( type: esriFieldTypeInteger, alias: STRUC_STATUS , Coded Values: [1: 1 - OPEN] , [2: 2 - CLOSED] , [3: 3 - PENDING] )
• LOCERROR ( type: esriFieldTypeString, alias: LOCERROR, length: 100 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• PREVIOUS_FHWA_NUMBER ( type: esriFieldTypeDouble, alias: PREVIOUS_FHWA_NUMBER )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
