Name: Surface Type

Display Field: SURFACE_TYPE

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: The following table is used to show the surface of the road for all road systems.

Service Item Id: 3631ba14238a446dbb17495be2d4cdba

Copyright Text: Iowa Department of Transportation

Default Visibility: false

MaxRecordCount: 10000

MaxSelectionCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 50000.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: false

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.0761218269539395E7
YMin: 4917980.424290336
XMax: -1.0028336799621947E7
YMax: 5394695.951092218
Spatial Reference: 102100  (3857)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: SURFACE_TYPE
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
Style: esriSLSSolid
Color: [130, 130, 130, 255]
Width: 3
Default Label: <all other values>
UniqueValueInfos:
• Value: 0
  Label: 0 - UNKNOWN
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [163, 55, 49, 255]
  Width: 3
• Value: 3
  Label: 3 - GRADE AND DRAINED EARTH
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [69, 48, 201, 255]
  Width: 3
• Value: 20
  Label: 20 - GRAVEL OR STONE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [56, 196, 51, 255]
  Width: 3
• Value: 30
  Label: 30 - BITUMINOUS
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [56, 168, 201, 255]
  Width: 3
• Value: 31
  Label: 31 - BITUMINOUS OVER GRAVEL OR STONE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [161, 51, 135, 255]
  Width: 3
• Value: 60
  Label: 60 - ASPHALT
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [181, 152, 38, 255]
  Width: 3
• Value: 61
  Label: 61 - HPMS ASPHALT
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [73, 201, 154, 255]
  Width: 3
• Value: 65
  Label: 65 - ASPHALT OVER PORTLAND CEMENT CONCRETE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [48, 92, 176, 255]
  Width: 3
• Value: 69
  Label: 69 - ASPHALT OVER ASPHALT
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [140, 184, 64, 255]
  Width: 3
• Value: 70
  Label: 70 - PORTLAND CEMENT CONCRETE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [114, 60, 158, 255]
  Width: 3
• Value: 71
  Label: 71 - HPMS CONCRETE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [156, 37, 77, 255]
  Width: 3
• Value: 74
  Label: 74 - PORTLAND CEMENT CONCRETE NOT REINFORCED
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [201, 58, 197, 255]
  Width: 3
• Value: 76
  Label: 76 - PORTLAND CEMENT CONCRETE FULLY REINFORCED
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [56, 166, 78, 255]
  Width: 3
• Value: 77
  Label: 77 - PORTLAND CEMENT OVER PORTLAND CEMENT
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [189, 121, 62, 255]
  Width: 3
• Value: 79
  Label: 79 - PORTLAND CEMENT CONCRETE OVER ASPHALT
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [63, 158, 147, 255]
  Width: 3
• Value: 81
  Label: 81 - BRICK
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [68, 123, 171, 255]
  Width: 3
• Value: 92
  Label: 92 - COMBINATION SURFACE
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [50, 61, 173, 255]
  Width: 3
Transparency: 0
Labeling Info:

Feature Draw Order:

N/A

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false
Supports Percentile Statistics: true
Supports Having Clause: true
Supports Count Distinct: true
Supports Time Relation: true
Supports Sql Format: false
Supports Query Analytic: false
Supports Query With Current User: true

HasZ: true

HasM: true

Time Info:

Start Time Field: EFFECTIVE_START_DATE
End Time Field: EFFECTIVE_END_DATE
Track ID Field: null
Time Extent:
[0182/07/08 00:00:00 UTC, 2051/12/21 00:00:00 UTC]

Time Reference: N/A
Time Interval: 1
Time Interval Units: esriTimeUnitsDays
Has Live Data: false
Export Options:
Use Time: true
Time Data Cumulative: false
Time Offset: -1 (esriTimeUnitsSeconds)

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• EVENT_ID ( type: esriFieldTypeString, alias: EVENT_ID, length: 38 )
• ROUTE_ID ( type: esriFieldTypeString, alias: ROUTE_ID, length: 15 )
• FROM_MEASURE ( type: esriFieldTypeDouble, alias: FROM_MEASURE )
• TO_MEASURE ( type: esriFieldTypeDouble, alias: TO_MEASURE )
• BUSINESS_DATE ( type: esriFieldTypeDate, alias: BUSINESS_DATE, length: 8 )
• EFFECTIVE_START_DATE ( type: esriFieldTypeDate, alias: EFFECTIVE_START_DATE, length: 8 )
• EFFECTIVE_END_DATE ( type: esriFieldTypeDate, alias: EFFECTIVE_END_DATE, length: 8 )
• SURFACE_TYPE ( type: esriFieldTypeInteger, alias: SURFACE_TYPE , Coded Values: [0: 0 - UNKNOWN] , [3: 3 - GRADE AND DRAINED EARTH] , [20: 20 - GRAVEL OR STONE] , ...14 more... )
• LOCERROR ( type: esriFieldTypeString, alias: LOCERROR, length: 100 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• GLOBALID ( type: esriFieldTypeGlobalID, alias: GLOBALID, length: 38 )
• SHAPE.LEN ( type: esriFieldTypeDouble, alias: SHAPE.LEN )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

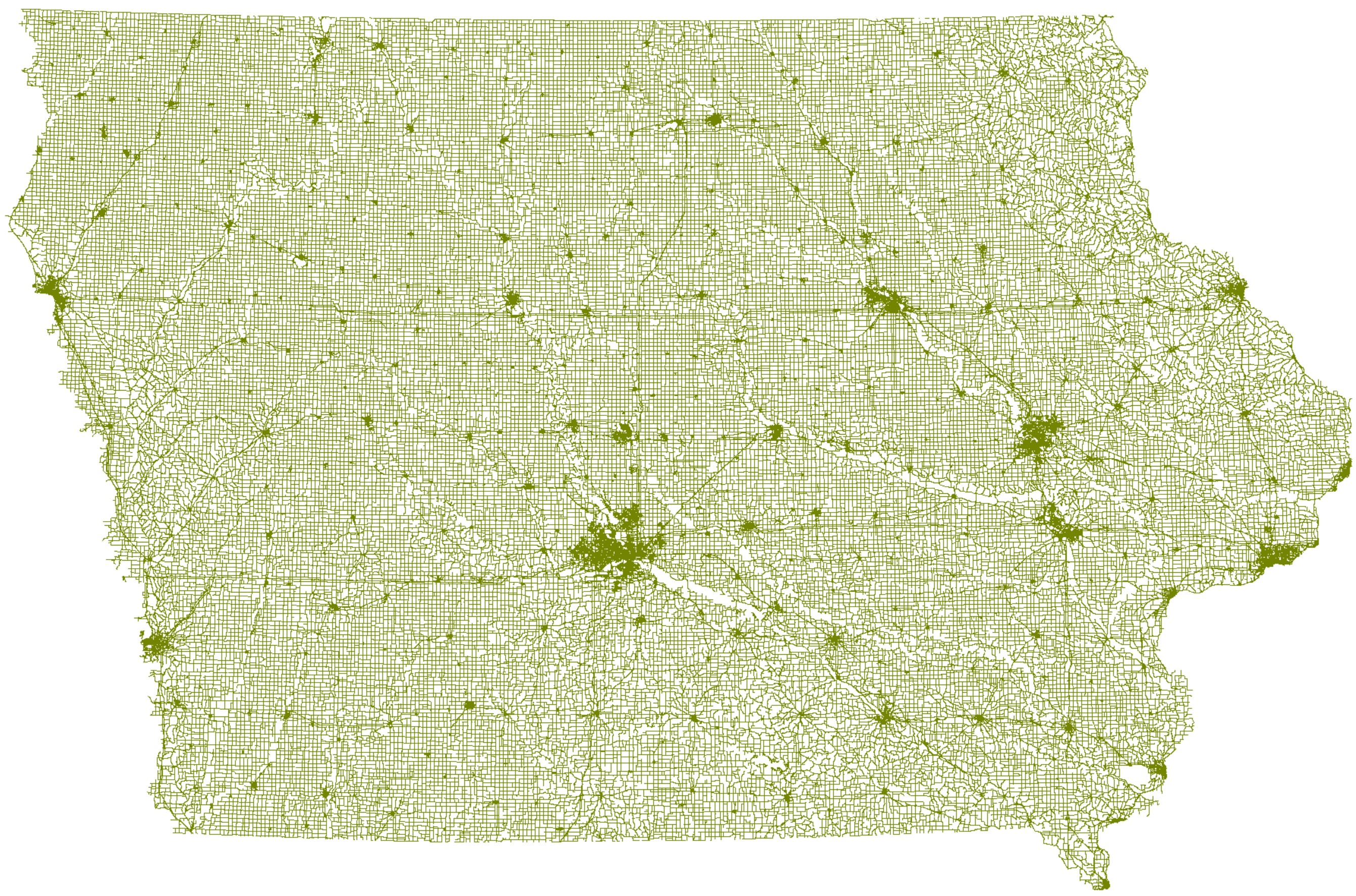

  Iteminfo   Thumbnail   Metadata
