Name: Planning Class

Display Field: PLANNING_CLASS

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description:

Service Item Id: 3631ba14238a446dbb17495be2d4cdba

Copyright Text:

Default Visibility: false

MaxRecordCount: 10000

Supported Query Formats: JSON, geoJSON

Min Scale: 50000

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: false

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.0761205811810784E7
YMin: 4917982.504077096
XMax: -1.0028389746694311E7
YMax: 5394358.313948039
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: PLANNING_CLASS
Field 2: null
Field 3: null
Field Delimiter: ,
Default Symbol:
N/A
Default Label: null
UniqueValueInfos:
• Value: 1
  Label: 1 - INTERSTATE
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [86, 201, 50, 255]
  Width: 3
• Value: 2
  Label: 2 - COMMERCIAL AND INDUSTRIAL NETWORK
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [201, 182, 68, 255]
  Width: 3
• Value: 3
  Label: 3 - AREA DEVELOPMENT
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [50, 174, 199, 255]
  Width: 3
• Value: 4
  Label: 4 - ACCESS ROUTES
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [137, 41, 196, 255]
  Width: 3
• Value: 5
  Label: 5 - LOCAL SERVICE
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [184, 70, 39, 255]
  Width: 3
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• PLANNING_CLASS ( type: esriFieldTypeInteger, alias: PLANNING_CLASS , Coded Values: [1: 1 - INTERSTATE] , [2: 2 - COMMERCIAL AND INDUSTRIAL NETWORK] , [3: 3 - AREA DEVELOPMENT] , ...2 more... )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• EVENT_ID ( type: esriFieldTypeString, alias: EVENT_ID, length: 38 )
• ROUTE_ID ( type: esriFieldTypeString, alias: ROUTE_ID, length: 15 )
• FROM_MEASURE ( type: esriFieldTypeDouble, alias: FROM_MEASURE )
• TO_MEASURE ( type: esriFieldTypeDouble, alias: TO_MEASURE )
• BUSINESS_DATE ( type: esriFieldTypeDate, alias: BUSINESS_DATE, length: 8 )
• EFFECTIVE_START_DATE ( type: esriFieldTypeDate, alias: EFFECTIVE_START_DATE, length: 8 )
• EFFECTIVE_END_DATE ( type: esriFieldTypeDate, alias: EFFECTIVE_END_DATE, length: 8 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.LEN ( type: esriFieldTypeDouble, alias: SHAPE.LEN )
• ACCESS_IOWA ( type: esriFieldTypeString, alias: ACCESS_IOWA, length: 1 , Coded Values: [Y: Y=Yes] , [N: N=No] )

Supported Operations:   Query   Query Attachments   Generate Renderer   Return Updates

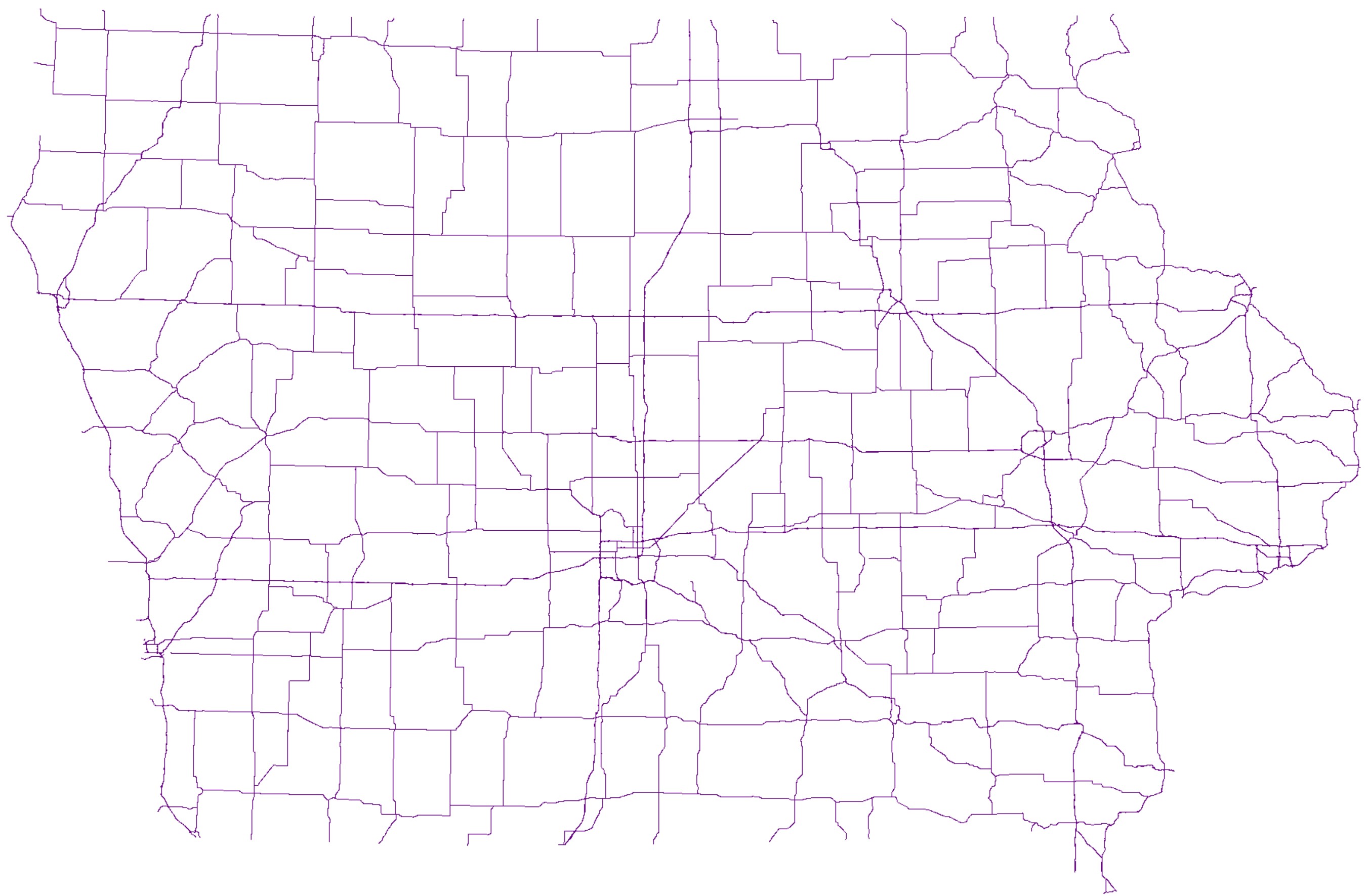

  Iteminfo   Thumbnail   Metadata
