Name: Route Qualifier

Display Field: ROUTE_QUALIFIER

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description:

Service Item Id: 3631ba14238a446dbb17495be2d4cdba

Copyright Text:

Default Visibility: false

MaxRecordCount: 10000

Supported Query Formats: JSON, geoJSON

Min Scale: 50000

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: false

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -1.0761205811810784E7
YMin: 4917981.862251448
XMax: -1.0028389746694311E7
YMax: 5394358.313948039
Spatial Reference: 102100  (3857)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: ROUTE_QUALIFIER
Field 2: null
Field 3: null
Field Delimiter: ,
Default Symbol:
N/A
Default Label: null
UniqueValueInfos:
• Value: 1
  Label: NO QUALIFIER OR NOT SIGNED
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [59, 76, 161, 255]
  Width: 3
• Value: 2
  Label: ALTERNATE
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [157, 48, 176, 255]
  Width: 3
• Value: 3
  Label: BUSINESS ROUTE
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [199, 80, 50, 255]
  Width: 3
• Value: 4
  Label: BYPASS BUSINESS
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [47, 194, 69, 255]
  Width: 3
• Value: 5
  Label: SPUR
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [86, 44, 201, 255]
  Width: 3
• Value: 6
  Label: LOOP
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [48, 138, 171, 255]
  Width: 3
• Value: 7
  Label: PROPOSED
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [189, 43, 126, 255]
  Width: 3
• Value: 8
  Label: TEMPORARY
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [191, 180, 52, 255]
  Width: 3
• Value: 9
  Label: TRUCK ROUTE
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [60, 194, 156, 255]
  Width: 3
• Value: 10
  Label: NONE OF THE ABOVE
  Description:
  Symbol:
  Style: esriSLSSolid
  Color: [176, 122, 48, 255]
  Width: 3
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• ROUTE_QUALIFIER ( type: esriFieldTypeInteger, alias: ROUTE_QUALIFIER , Coded Values: [1: NO QUALIFIER OR NOT SIGNED] , [2: ALTERNATE] , [3: BUSINESS ROUTE] , ...7 more... )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• EVENT_ID ( type: esriFieldTypeString, alias: EVENT_ID, length: 38 )
• ROUTE_ID ( type: esriFieldTypeString, alias: ROUTE_ID, length: 15 )
• FROM_MEASURE ( type: esriFieldTypeDouble, alias: FROM_MEASURE )
• TO_MEASURE ( type: esriFieldTypeDouble, alias: TO_MEASURE )
• BUSINESS_DATE ( type: esriFieldTypeDate, alias: BUSINESS_DATE, length: 8 )
• EFFECTIVE_START_DATE ( type: esriFieldTypeDate, alias: EFFECTIVE_START_DATE, length: 8 )
• EFFECTIVE_END_DATE ( type: esriFieldTypeDate, alias: EFFECTIVE_END_DATE, length: 8 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.LEN ( type: esriFieldTypeDouble, alias: SHAPE.LEN )
• BUSINESS_ROUTE_NUMBER ( type: esriFieldTypeInteger, alias: BUSINESS_ROUTE_NUMBER )

Supported Operations:   Query   Query Attachments   Generate Renderer   Return Updates

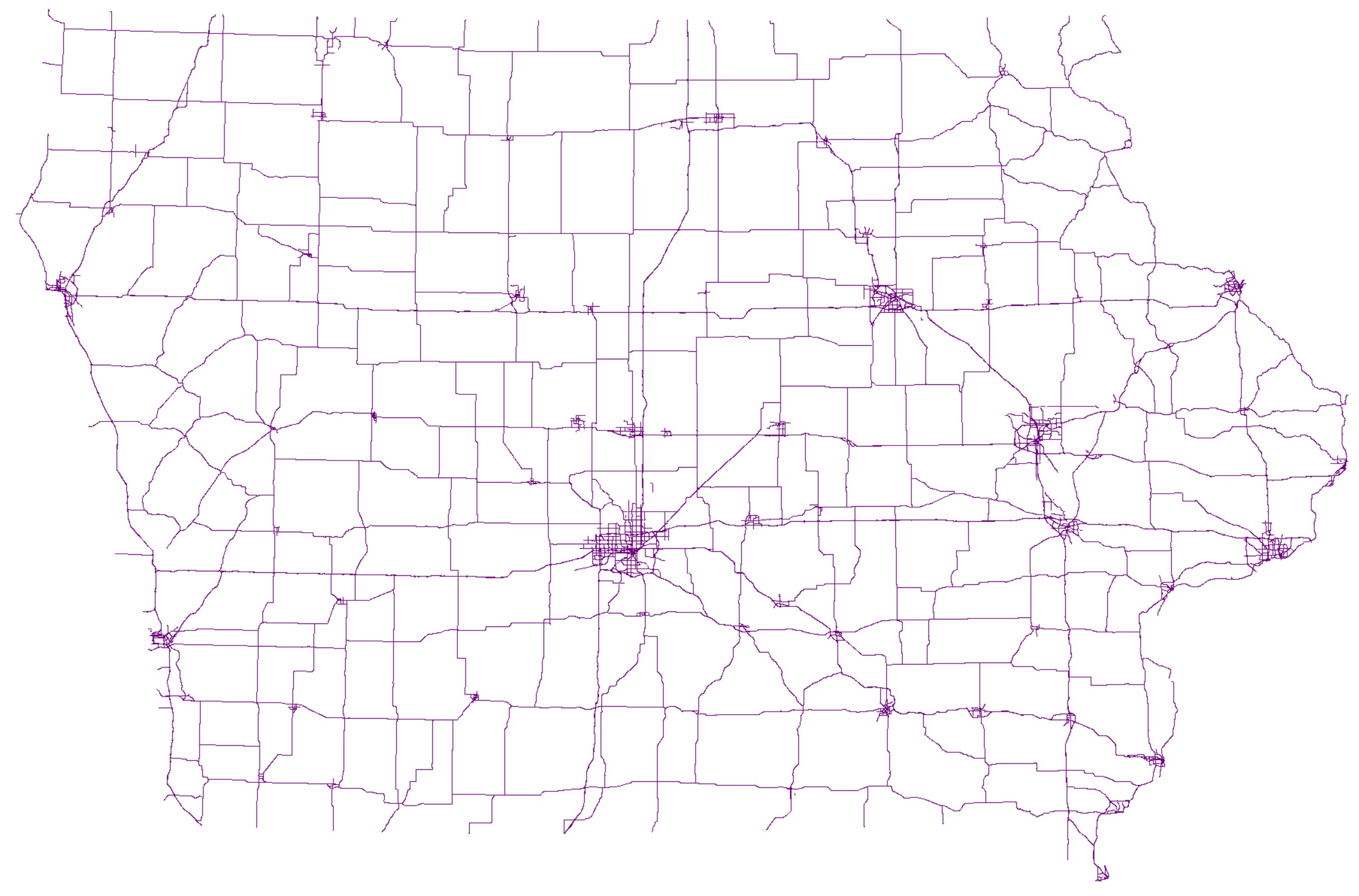

  Iteminfo   Thumbnail   Metadata
